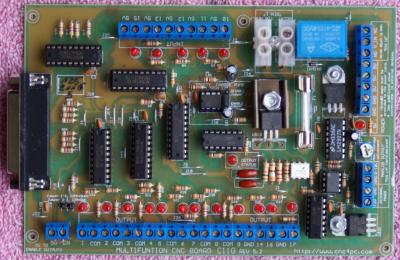

C11GBreakoutBoard

Overview

This card has been designed to provide a flexible interface and functions to your computer projects, by using the parallel port control software. This board comes as a response to many customers that have been asking for a faster way to connect devices and reduce the possibility of wiring errors. This board only differs slightly from the C11 version in that it does not have opto-isolation on the stepper motor drives, which in many cases already provide that function on their inputs. In addition, there is no loop through on the parallel port. See the CNC4PC Site page for more details.

Features · Partially optoisolated (designed for use with already opto-isolated drivers) · Built-in Safety Charge Pump · Built-in Variable Speed Control · All pins can be used in a concurrent manner · Buffered outputs · Status LEDs on all inputs and output connections · Output pins 1, 2, 3, 4, 5, 6, 7, 8, 9, 14, 16, 17. · Input pins 10, 11, 12, 13, 15. · Input and output pins with close by ground connections · Easy installation of an On/Off switch. You can control the card externally · All TTL 5VDC signals · Screw-On connections for all terminals

This board is designed to carry an on board mains switch. We do not recommend using it at 240V and in order to comply with European Regulations it will be disabled!

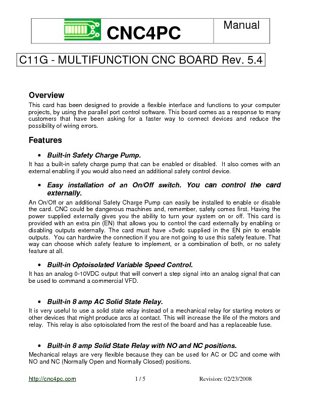

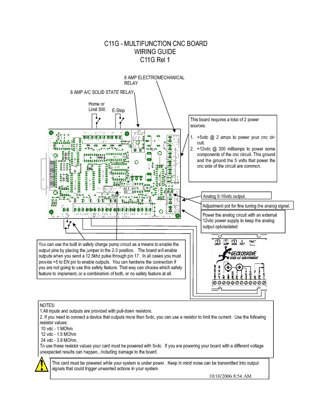

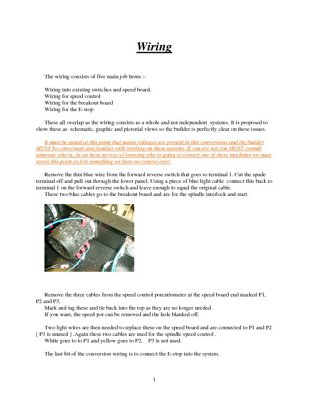

Documentation

See the CNC4PC site for full details on the board. are also available.

Prices

We hold a small stock of these boards to supply with the Mach-in-a-box when used with the Arc Euro Trade X3 conversion and they are suitable for other home machine conversions. Price for the board in Europe is £75 (+ VAT)
