BIN6 to 24bit Protocol Dongle

Tuesday 05 of May, 2015 (12:00:44 UTC)

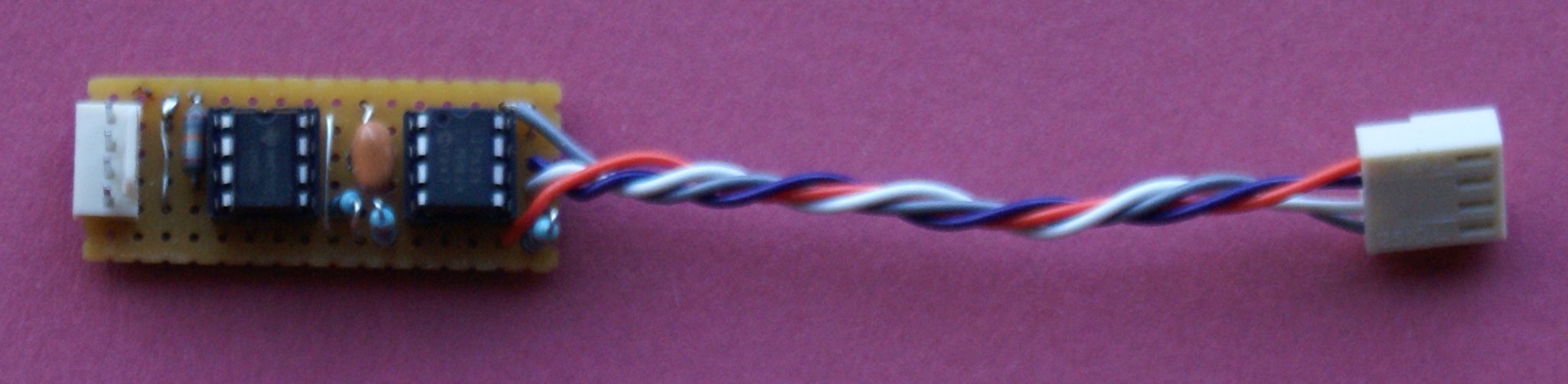

This module is designed to work with the 3V scales which do not allow powering of the scales down the cable. It runs at 5V in the DRO350 but handles the 1.5V signals from the scale.
