Old Small LCD Backlight

While the large display used with the Tacho kit uses a direct 5V supply, the smaller displays had a number of supply options. The one that we now have available simply needs a 3.3 ohm resistor to drop the voltage correctly.

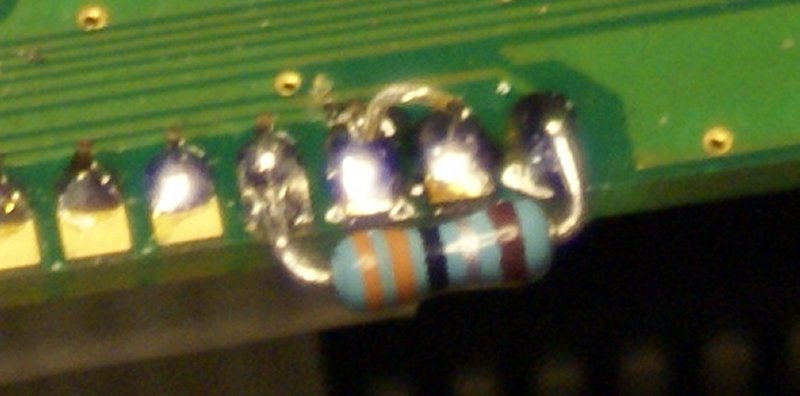

Pins 15 and 16 appear at the wrong end of the connector strip, but a simple link from 1 to 16 provides the earth, while the 3R3 resistor can be looped from 15 to pin 2 as shown. Just to add to the fun some manufacturers swap the pin numbers around on these two pins. On the large display pin 15 is next to pin 1.

The kits will now be supplied with these displays at no extra cost. is the full datasheet on the module.
