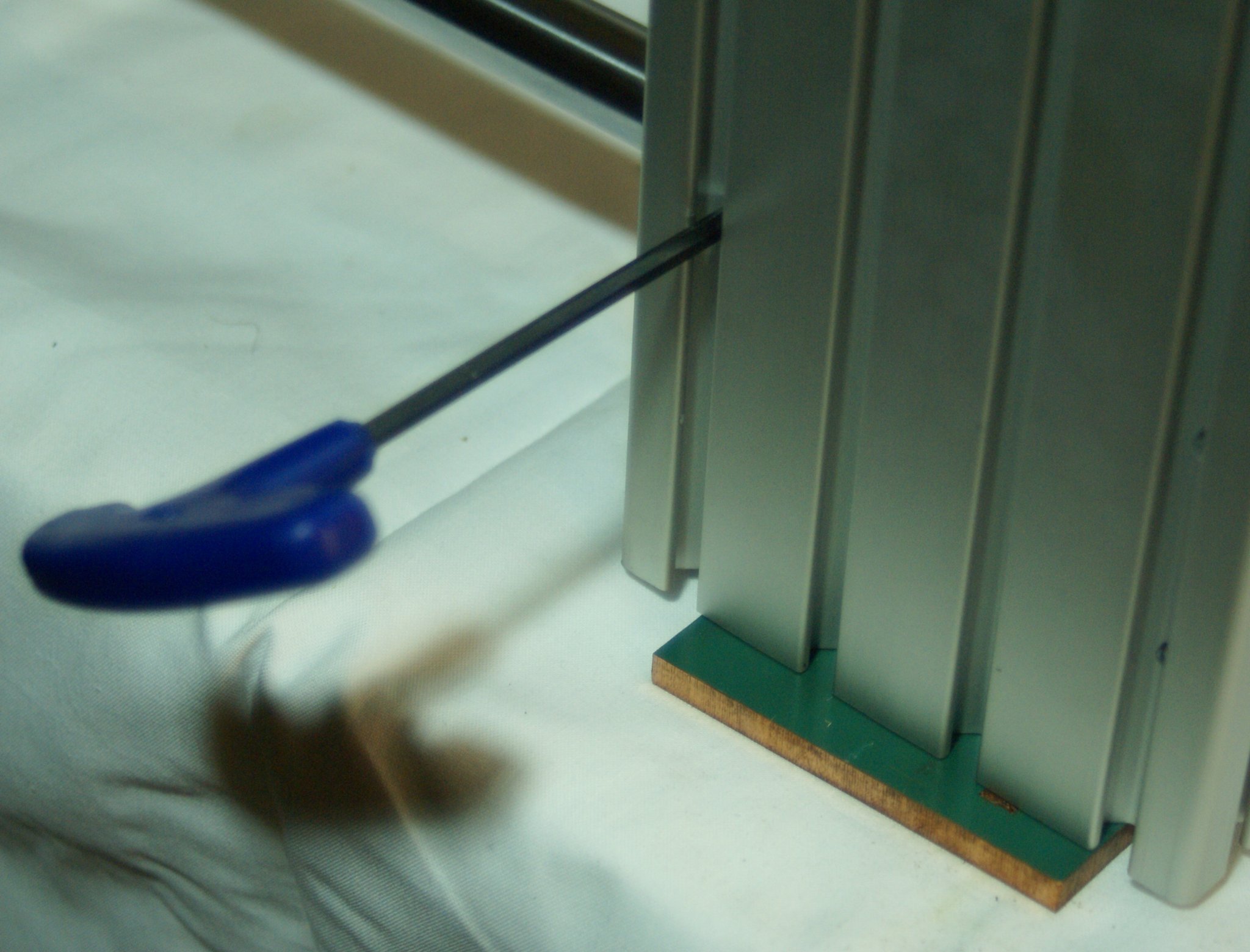

A 6mm spacer lifts the gantry to the exact height to line up with the holes, and working on a flat surface ensures that the gallery will be approximately square with the guide rails. With the Tee Bar Allen key it is fairly easy to align the captive bolt central with the hole so that the bold is gripping equally on both sides of the rail slot.
