Stepper Motor Mount

Stepper Motor Mount.jpg (image/jpeg • 370.3 KB)
Tuesday 05 of May, 2015 (12:00:06 UTC)

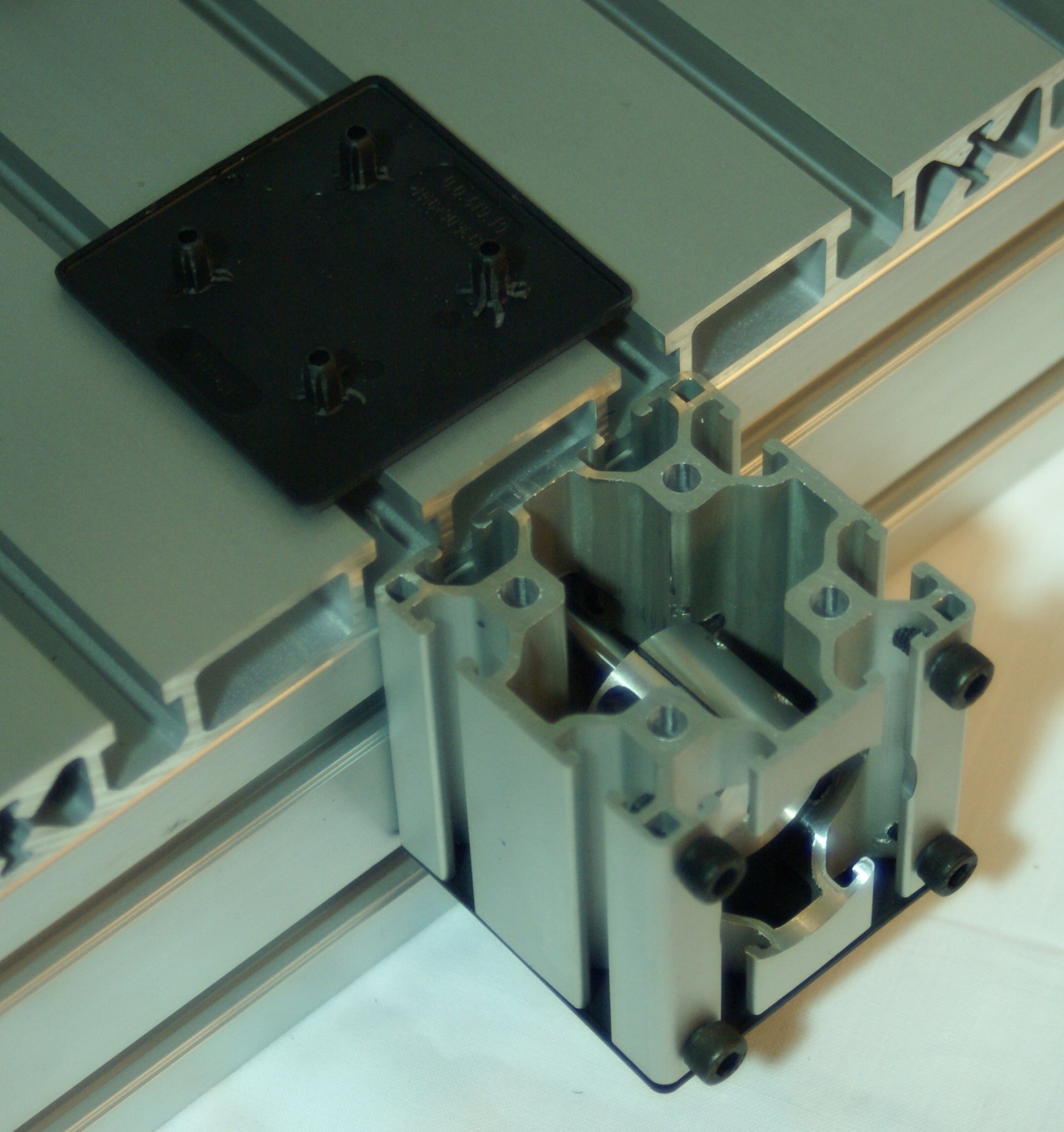

All three mounting blocks are of the same style, and need the cover removing in order to access the coupling bolts. The holes in the Taig stepper motors needed to be opened a little to fit them with the metric bolts provided.
