Z Axis Back
Z Axis Back.jpg (image/jpeg • 305.5 KB)
none
5 May 2015
1413

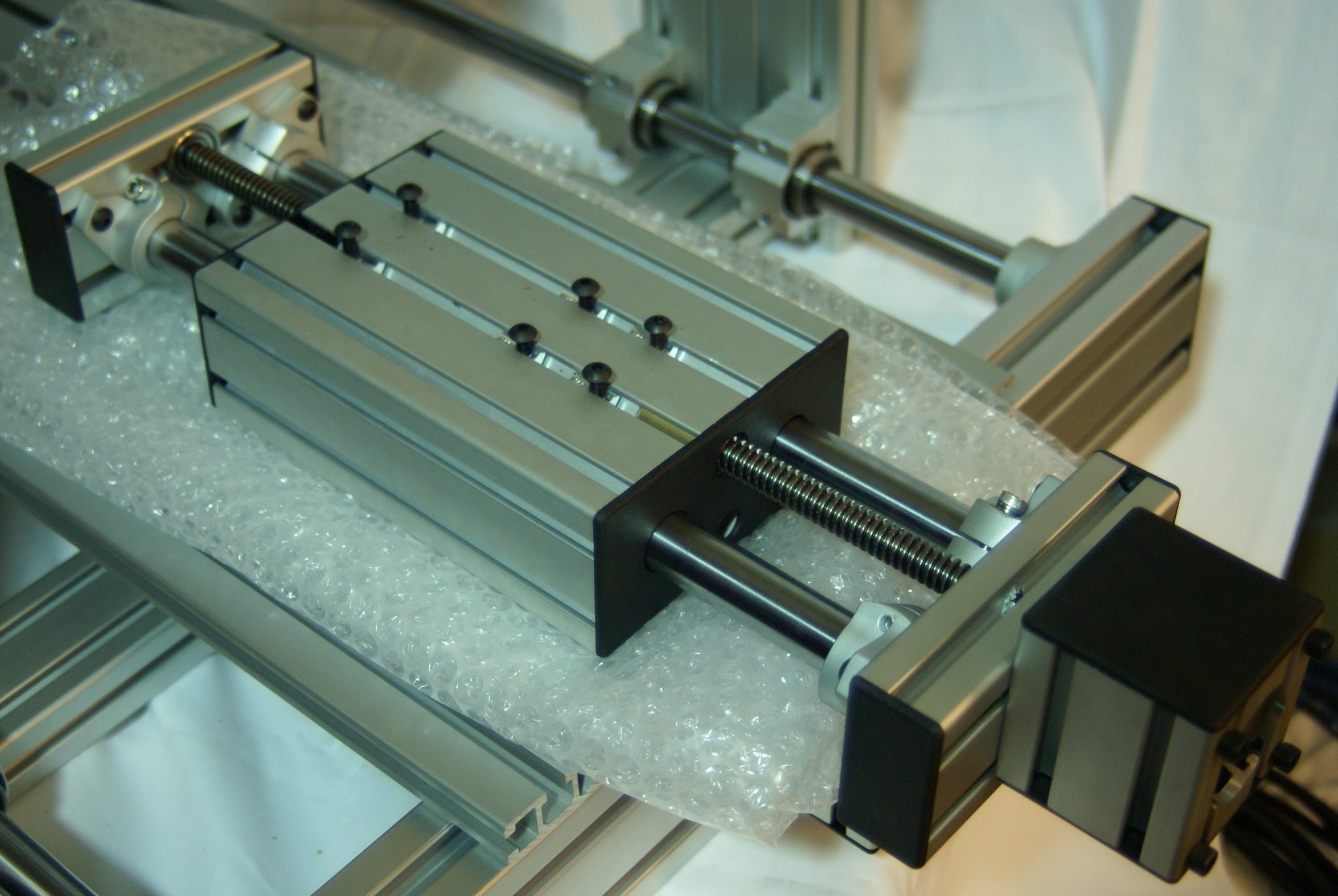

The six bolts in the back of the Z module need loosening to allow them to slide onto the gantry block. The three pairs need to align with the holes visible in the gantry block.
