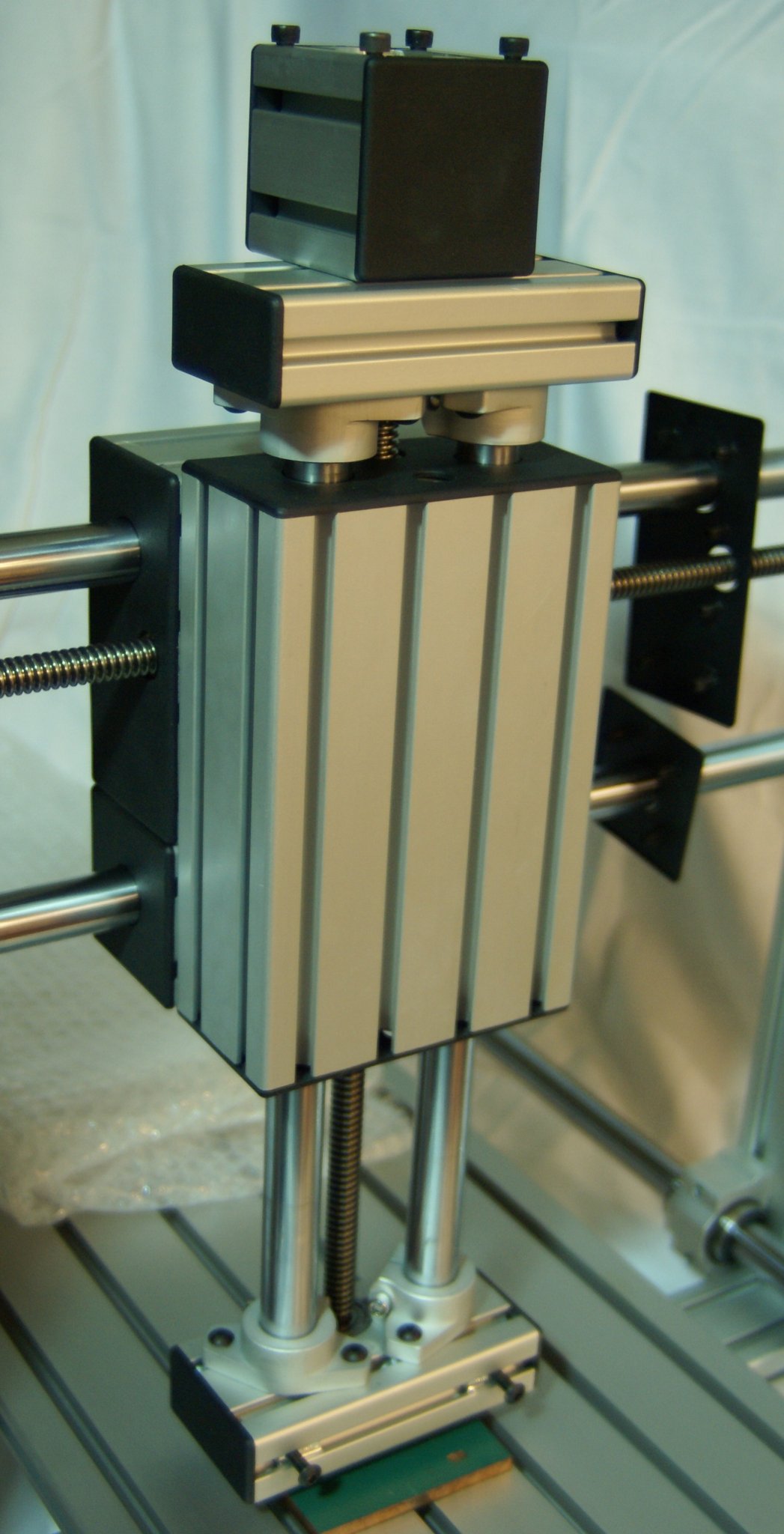

Z Axis Mounted

Z Axis Mounted.jpg (image/jpeg • 207.3 KB)
Tuesday 05 of May, 2015 (11:59:47 UTC)

Even with the ball end Allen keys, gaining access to the six bolts is a little tricky, but by winding the Z Axis down to the table and fitting the 6mm spacer ( although a 25mm one may be more appropriate ) the Z Axis becomes a lot easier to keep square to the table and the gantry block. It is anticipated that little fine adjustment will be needed to square up the Z Axis.
